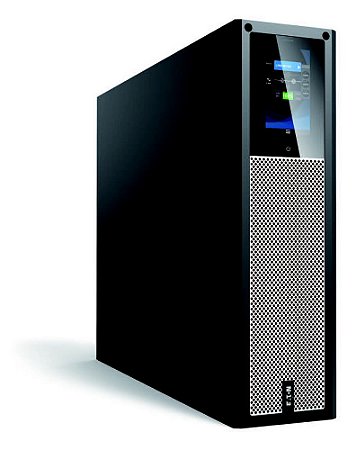

NoBreak EATON 20kVA 20000VA 9SX Trifasico 380V e Monofasico 220V 9SX20KPM
NoBreak EATON 20kVA 20000VA 9SX - Trifasico 380V e Monofasico 220V - 9SX20KPM
O novo no-break Eaton 9SX 20kVA fornece energia estável para dispositivos essenciais para medicina, indústria, manufatura e infraestruturas de TI. Ele utiliza tecnologia avançada para melhorar a eficiência da dupla conversão e economizar na conta de luz e no custo de espaço no rack. O novo no-break também tem um design robusto para ambientes e cargas rigorosas que permite expandir a área de aplicação.
Features:
-
High efficiency with double conversion mode efficiency up to 96%
-
ESS mode efficiency up to 98.8% with break time less than 2ms
-
Unity power factor: Powers more servers than similar UPSs with equivalent VA ratings and lower power factors
-
Intelligent Power Management Software which is compatible with all major OS including virtualization software such as VMware and Hyper-V
-
Support Eaton Network-M2 card certified by UL 2900-2-2 and IEC cyber security standards
-
High power density and reduces rack space
-
Flexible input and output wiring configuration in 3:3, 3:1, 1:1 which enables easy stock to catch up with fast deployed edge computing market
-
Large LCD touch screen with built-in gravity sensor assures fast installation
-
Eaton's exclusive ABM® technology increases battery service life by 50%
Technical Specs:
| General | |
| Topology do NoBreak | Double conversion |
| Configuration | Rack/Tower |
| Part Number | 9SX20KPM |
| Rating (VA/Watts) | 20kVA / 20kW - 20000VA / 20000W |
| Dimensions (H x W x D, mm) | 129 x 438 x 589 |
| Weight (kg) | 23.7 |
| Warranty | 1 year |
| Electrical Input | |
| Connection |
Hardwired - see manual for terminal block layout
 |
| Input Voltage Range | 160V~300V full load; 100~160V linear derating |
| Nominal Voltage | 1 phase 220/230/240V; 3 phase 380/400/415V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Input Power Factor | 1 |
| THDI | ≤3% linear load; ≤5% non-linear load |
| Electrical Output | |
| Voltages | 1 phase 220/230/240V; 3 phase 380/400/415V |
| Voltage THD | ≤1% linear load; ≤3% non-linear load |
| Output Receptacles |
Hardwired - see manual for terminal block layout
|
| Overload Capacity | 105% |
| Efficiency (Normal Mode) | Up to 96% in Online mode, up to 98.8% in ECO or ESS mode |
| Output Frequency | 50/60 Hz autoselect |
| Load Crest Factor | ≥3:1 |
